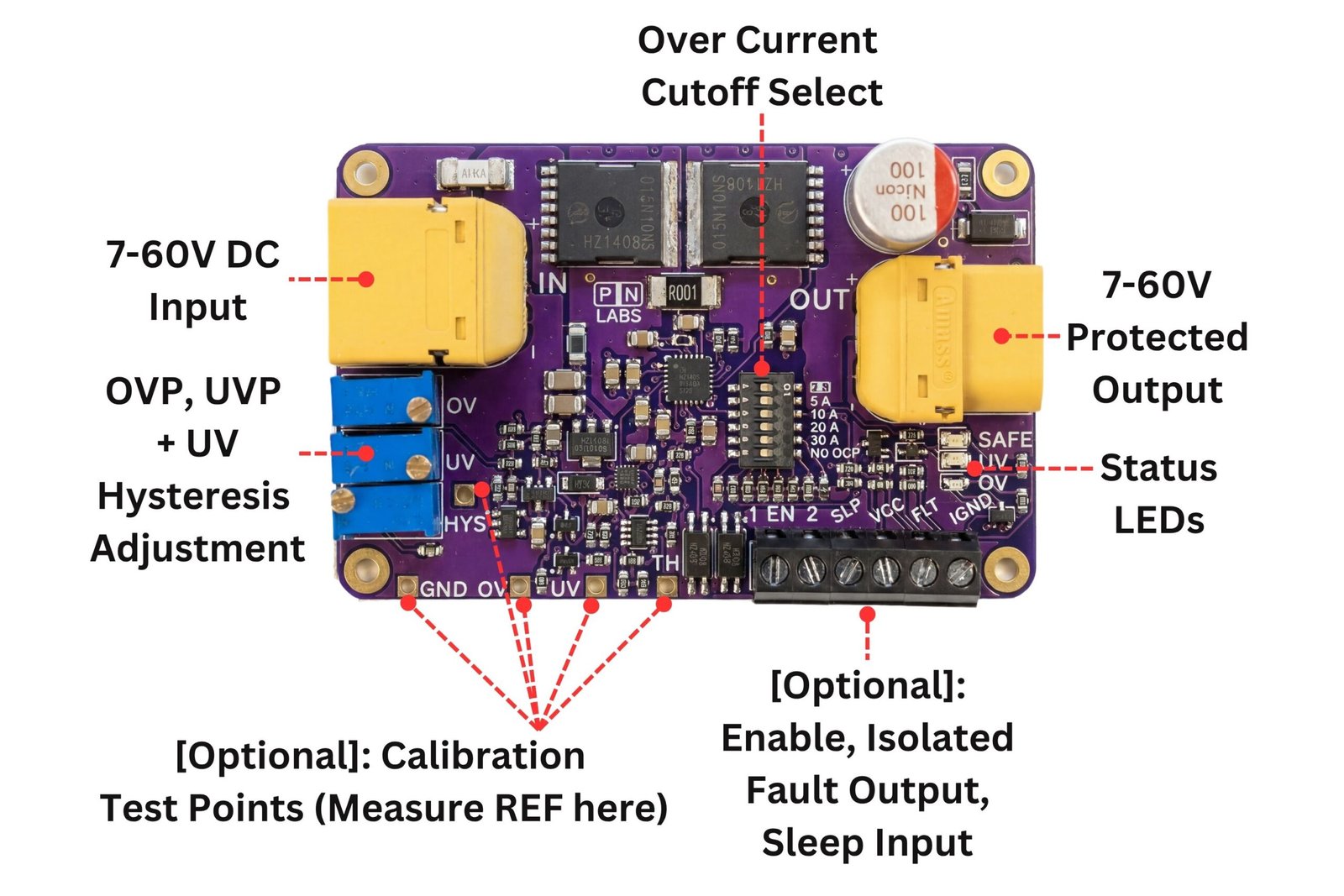

Description
- Adjustable Overvoltage & Undervoltage Protection (7–60 V): Set independent cutoff thresholds for both high and low voltage events. When input voltage exceeds or drops below the configured limits, Protect+ automatically disconnects the load and restores power once conditions normalize.
- Adjustable UVLO Hysteresis (0.9–5.2 V): Dial in the right amount of undervoltage hysteresis to account for cable voltage drop, which is especially important with long or thin wires at high currents. Prevents unwanted chatter and power blips during recovery.

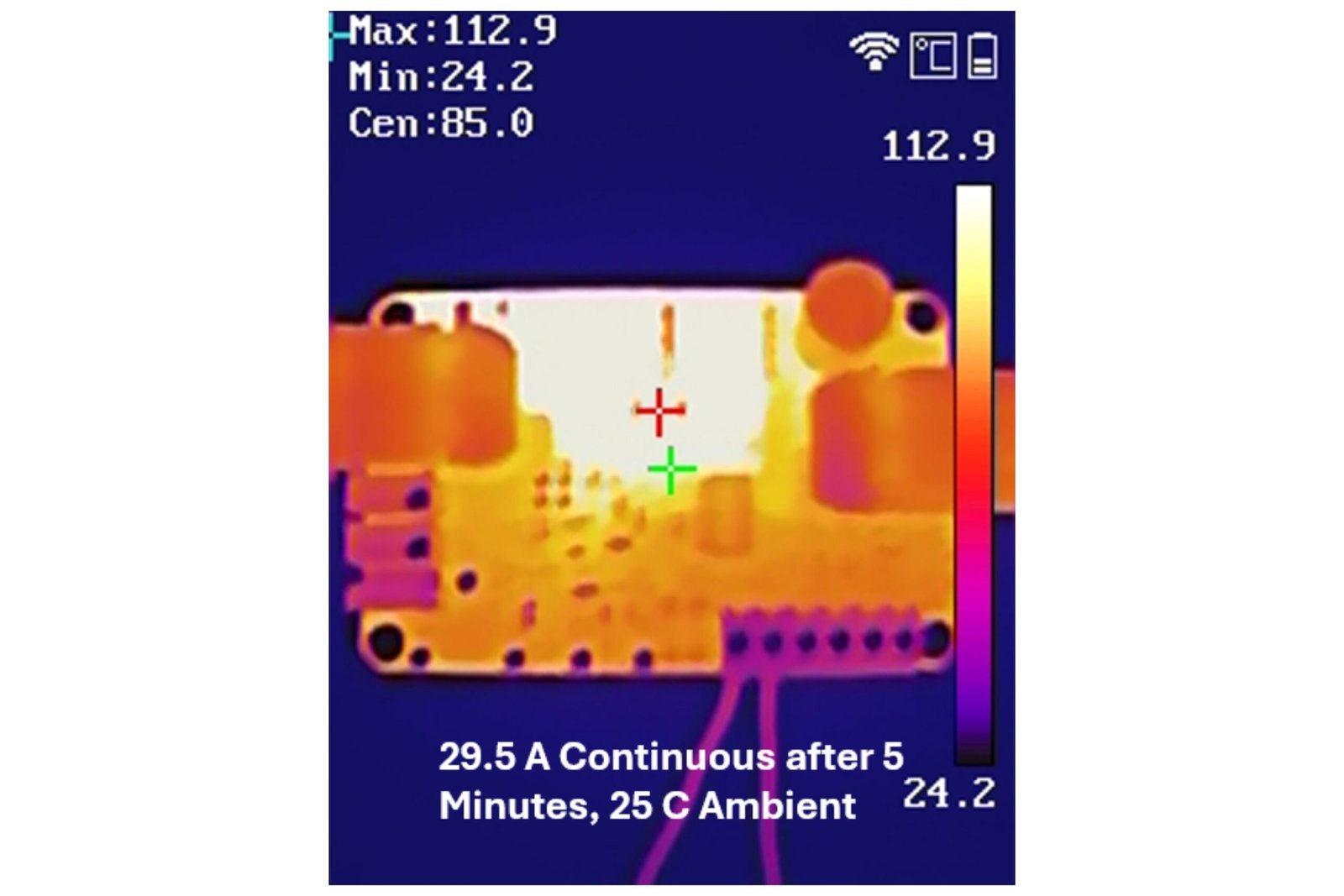

- Latch-Off Overcurrent Protection: Adjustable current cutoff selectable from 2, 5, 10, 20, 30 A or No OCP with ±5% typical accuracy and a ~50 ms response time. On an overcurrent event, the module latches off and waits for a manual or electronic reset, giving you full control before power is restored.
- Reverse Polarity & Reverse Current Protection: Ideal diode functionality blocks reverse current flow with minimal voltage drop, protecting against incorrect wiring and enabling safe paralleling of power supplies, batteries, or solar panels (power ORing).

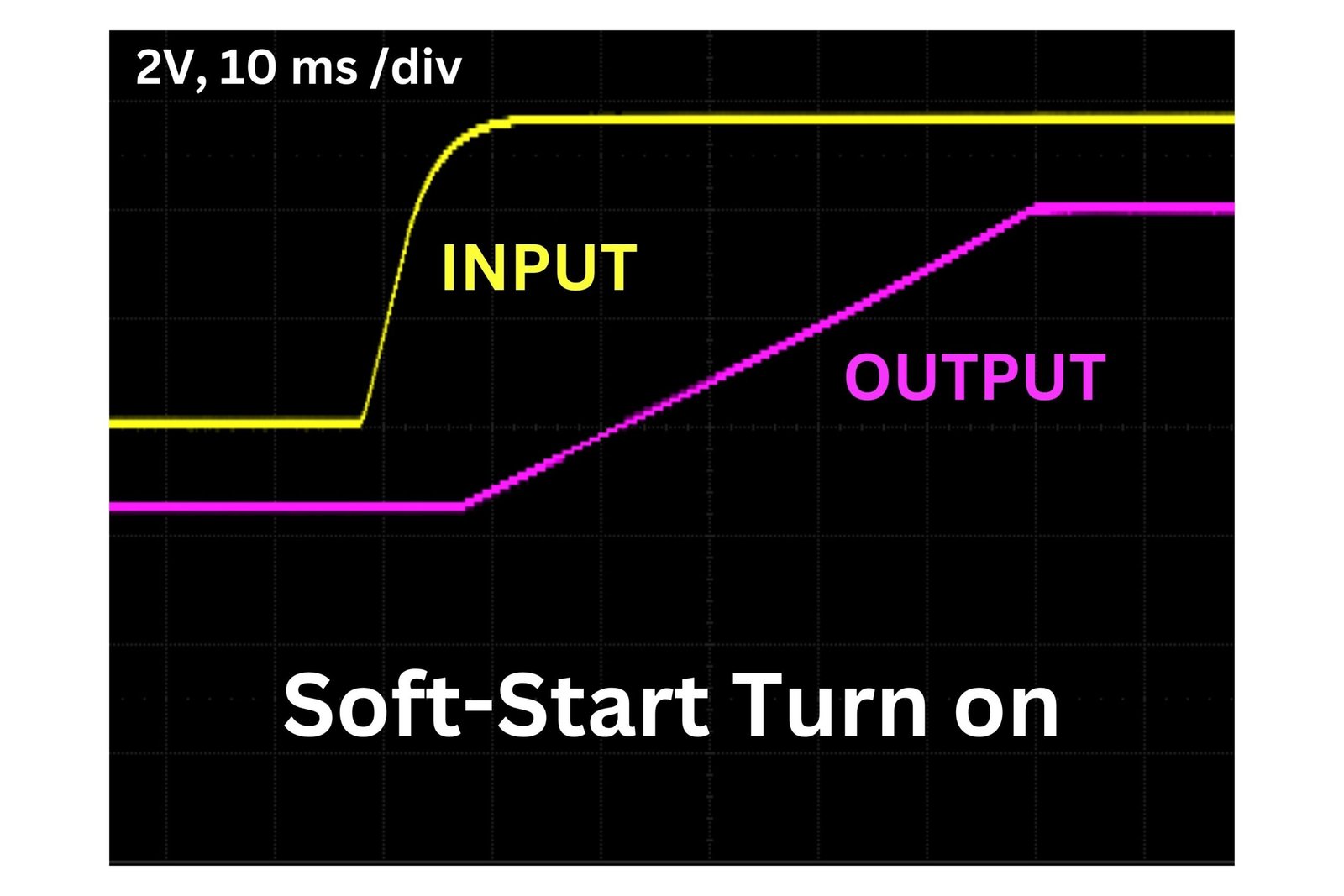

- Soft-Start Power-On: Output voltage ramps gradually at approximately 0.2 V/ms after the UVLO threshold is cleared, protecting against inrush and ensuring the protection thresholds are evaluated before full voltage is applied.
- 40 A Series Fuse: A secondary layer of hardware protection on-board, guarding against conditions that could cause the pass MOSFETs to fail.
- Power Switch Capability: Use a low-current mechanical or digital switch via the Sleep input to toggle high-power loads. No bulky high-current switches required.

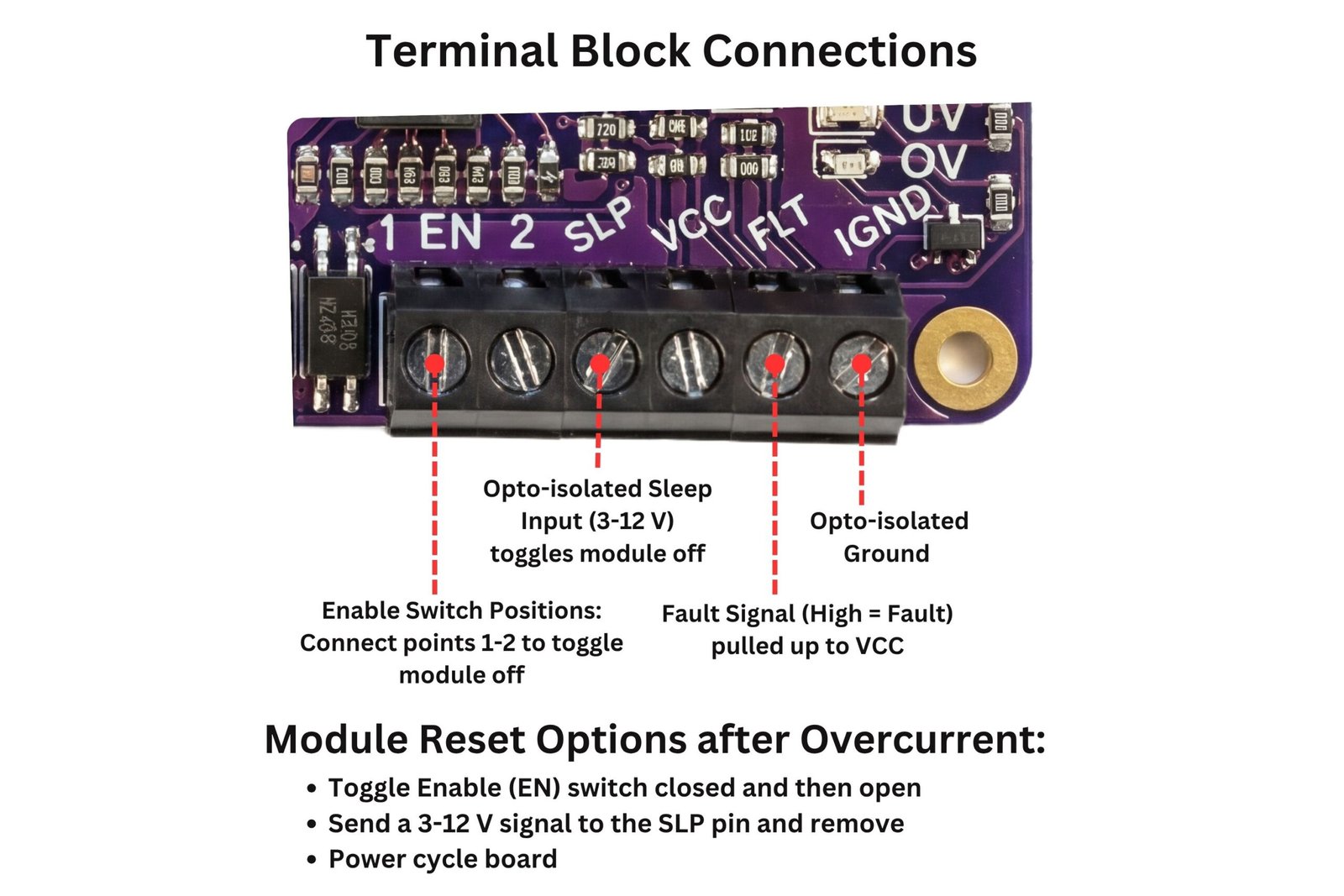

- Opto-isolated Fault Output & Sleep Input: Optional isolated open-collector fault signal for system diagnostics, alerts, or automated shutdown logic. Isolated sleep input allows external control of the module’s on/off state.

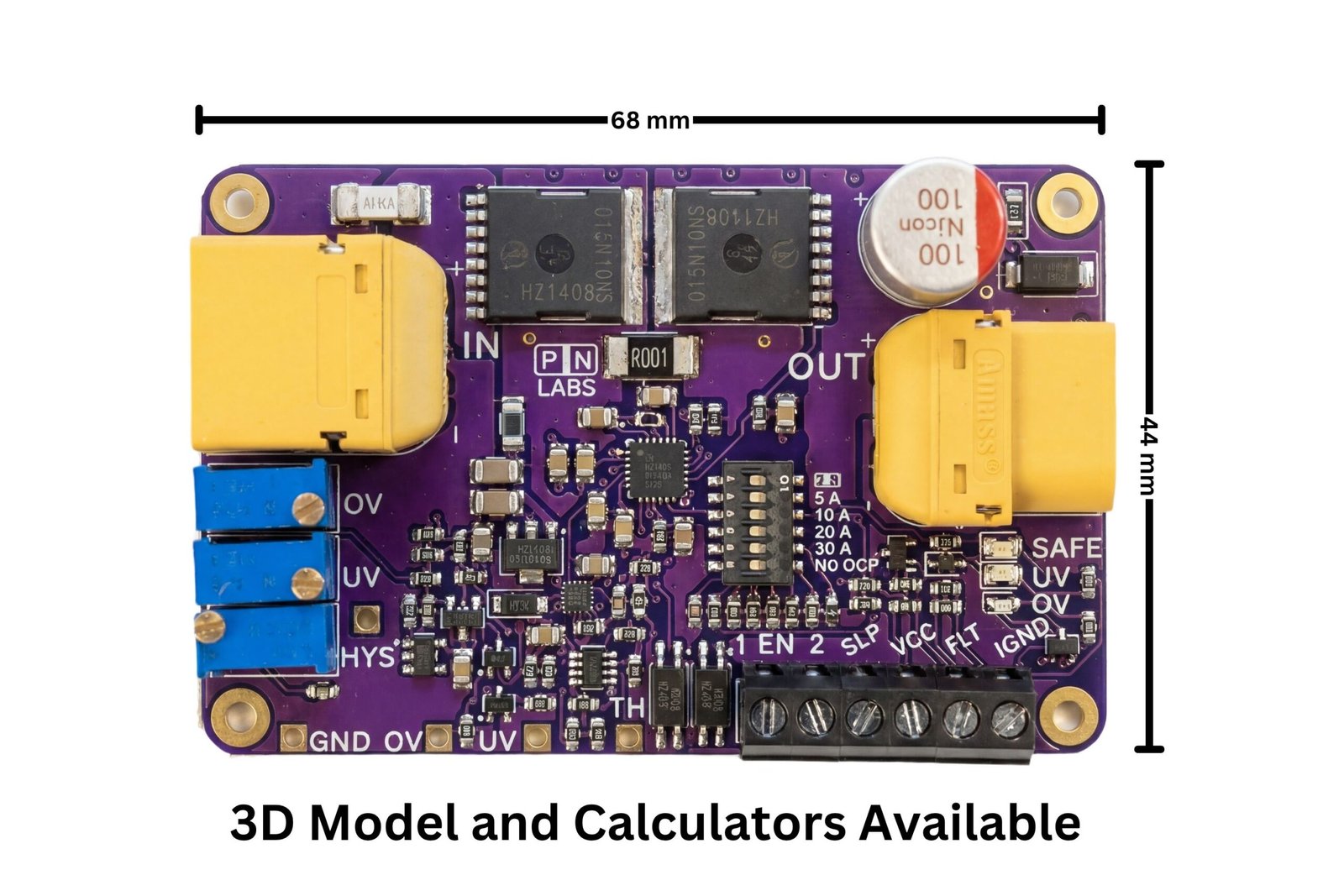

- Compact & Mountable: 68 x 44 mm PCB with M2 mounting holes and XT60 connectors (with mating pair and heat shrink included) for easy installation.
Threshold Calculator
Inputs
The UV cutoff is two voltages, not one. On the falling edge the module trips the load off; on the rising edge it holds the load off until the input has climbed back past a higher recovery point. The gap between the two is the hysteresis.
Enter whichever threshold you want to pin down. The other is computed based on the amount of hysteresis.
Interpret the value above as:
Gap between the UV trip and recovery voltages. This prevents UVLO chatter under high currents when cable voltage drop causes the load voltage to oscillate around the trip point. Valid range is 0.45 to 5.68 V. Use around 2.5 V for typical loads, or more for long or thin wiring.
VUVLO Hysteresis Explained
Shown below is the calculated behaviour of the under-voltage lockout:
Input voltage at which the module trips off on a rising edge. OV hysteresis is fixed in hardware and shown in the results panel.
VResults
Pad voltages

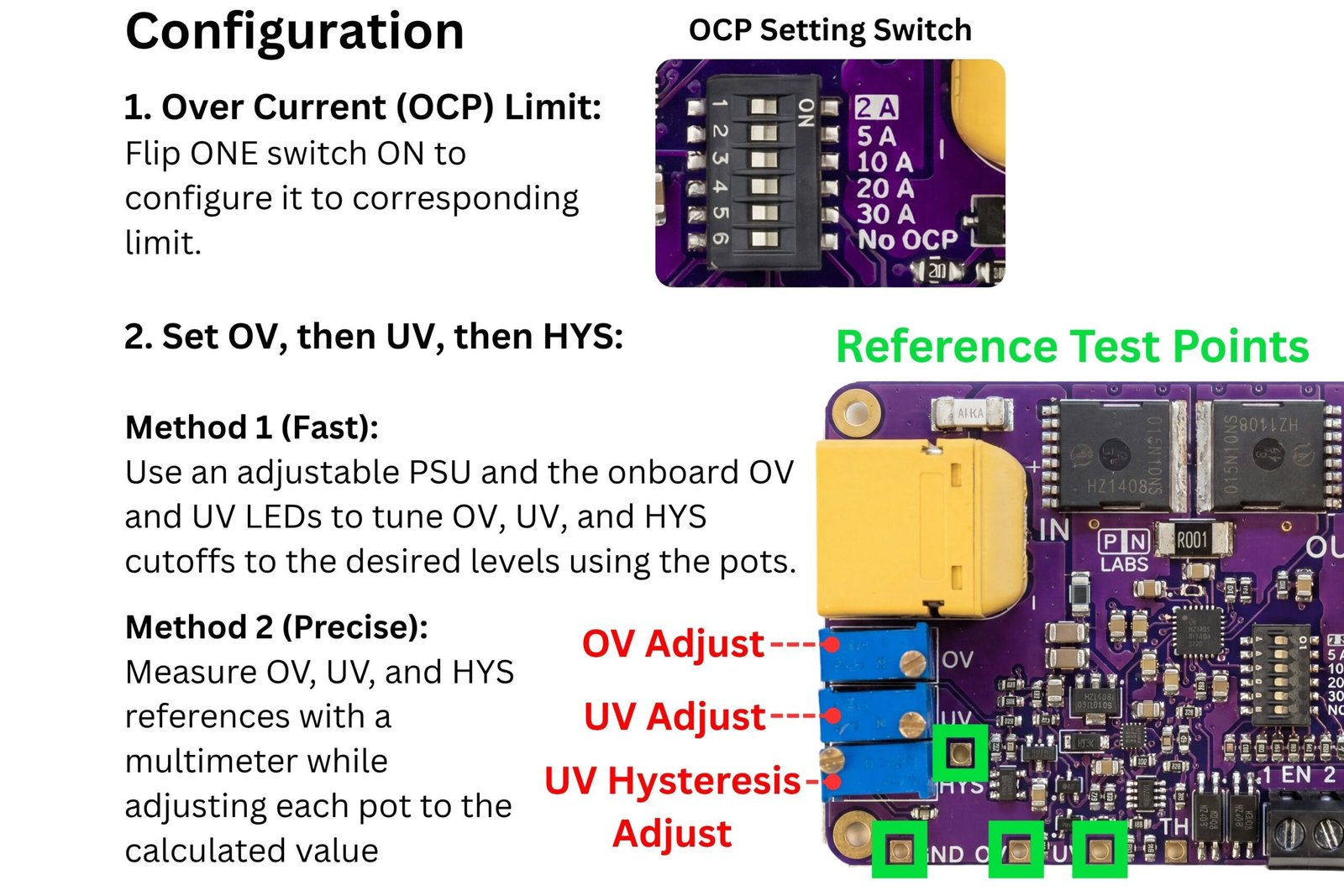

Power the board and probe each pad against GND with a multimeter in DC volts mode. It is CRITICAL to measure the HYS pad voltage when the red LED is on.
Adjust each pot until the pad reads the target.
| Pad | Set to |
|---|---|
| UV pad (red LED on) | – |
| HYS pad | – |
| OV pad (green LED on) | – |
Derived thresholds
Full set of rising and falling thresholds the module will exhibit with your settings.
| Threshold | Edge | Voltage |
|---|---|---|
| UV trip off | falling | – |
| UV recovery | rising | – |
| OV trip | rising | – |
| OV recovery | falling | – |
| Fixed OV hysteresis | – | – |
UV_pad = (V_UV_recovery − 0.047) / 30.53
HYS_pad = (V_HYS + 0.058) / 29.89
V_OV_recovery = 30.23 × OV_pad − 0.69
Paralleling Protection Behavior
⚠️ Why would you need to use a Protect+ module instead of just directly connecting in Parallel?
When two unequal voltage sources are connected in parallel, the higher-voltage source will push current into the lower-voltage one, trying to bring them both to the same potential.
This uncontrolled current can damage supplies that aren’t designed to accept it, as the internal control loop of the lower supply now has to fight to compensate for what the other source is doing. In the case of a battery, an unregulated and potentially dangerous current spike can flow — possibly exceeding the battery’s maximum charge current — damaging it by plating lithium and contributing to early failure.
Each Protect+ module has an internal comparator that senses the voltage across its pass MOSFET and switches it off within microseconds if reverse current is detected, isolating that source and protecting whatever is behind it.
A note on load sharing: ORing gives you clean redundancy and fault isolation — if one source drops out, the others carry the load with no backfeed. It does not actively balance current between sources. For the sources to share the load reasonably at all, we’ve found they generally need to be within about 0.5 V of each other; the higher source will still tend to carry more of the load until it reaches its current limit.
To operate the Protect+ module in paralleling (ORing) mode:
- Use one Protect+ module per power source.
- Set the OVC (overvoltage cutoff) limit on each module, or disable it by turning the OVC resistor to maximum resistance.
- Connect each power source to its own Protect+ module.
- Join the output terminals of all Protect+ modules together to form the combined output.
- (Optional) Add a switch to the Enable terminal on each module to individually turn sources on or off
